Fittings

PRECISION MEETS RELIABILITY

Republic Oil Tools offers a full portfolio of fittings for capillary tubing installations in the oilfield. These fittings provide a reliable, leak-free seal even under the most dynamic downhole conditions. They combine high-quality materials with precision manufacturing to provide the oilfield fit for purpose fittings instead of the typical off the shelf fittings provided by the large brands. By choosing Republic Oil Tools, users benefit from increased productivity, lower maintenance costs, and long-lasting durability.

Downhole

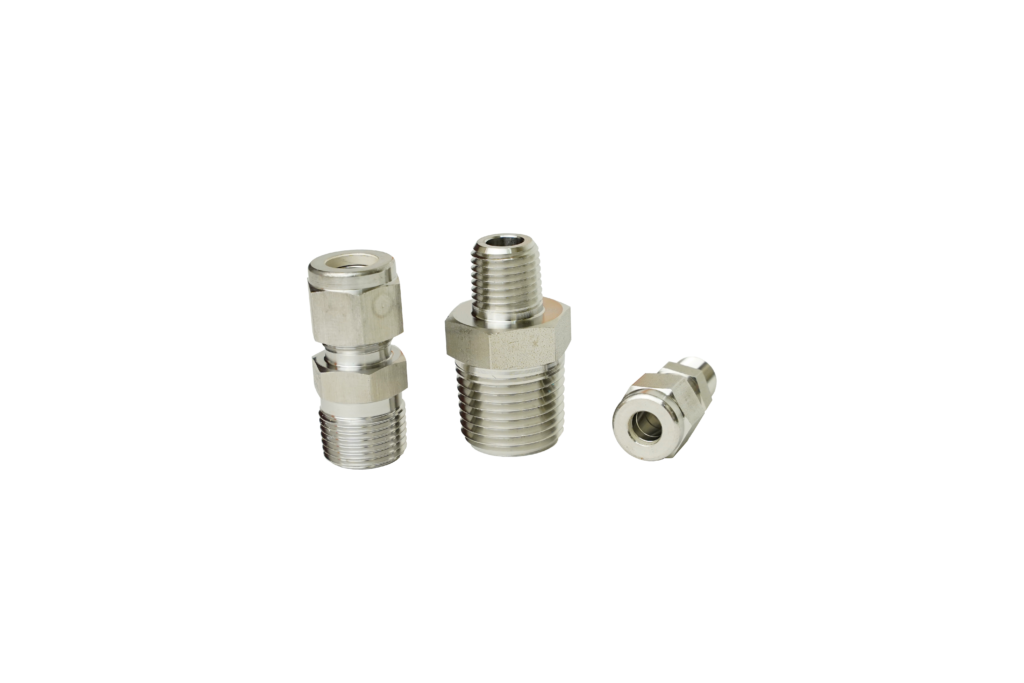

1/4″ C x 1/4″ MNPT; RE-4C-4M
3/8” C x 1/4″ MNPT; RE-6C-4M
1/4″ MNPT x 1/2″ MNPT; RE-4M-8M
1/2″ C x 1/2″ MNPT; RE-8C-8M
1/2″ MNPT x 1/2″ MNPT; RE-8M-8M

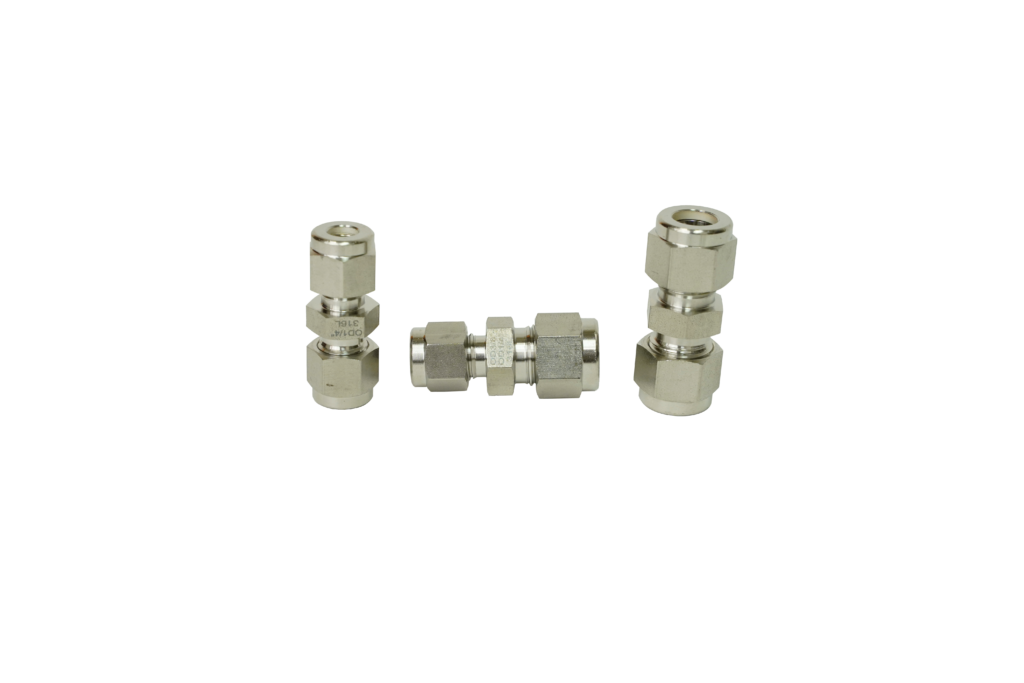

1/4″ C x 1/4″ C Union; RE-4C-4C-U
1/4″ C x 3/8” C Reducing Union; RE-4C-6C-U
3/8” C x 3/8” C Union; RE-6C-6C-U

Wellhead Fittings

1/4″ C x 1/4″ MNPT Bore Through; RE-4C-4M-BT
1/4″ C x 3/8” MNPT OSBT; RE-4C-6M-OSBT
1/4″ C x 1/2″ MNPT OSBT; RE-4C-8M-OSBT
3/8” C x 1/2″ MNPT OSBT; RE-6C-8M-OSBT
3/8” C x 3/8” MNPT Bore Through; RE-6C-6M-BT
1/2″ C x 3/8” MNPT Bore Through; RE-8C-6M-BT
4mm C x 1/4″ MNPT OSBT; RE-4MILC-4M-OSBT
4mm C x 3/8” MNPT OSBT; RE-4MILC-6M-OBST
4mm C x 1/2″ MNPT OSBT; RE-4MILC-8M-OSBT
1/2″ C x 1/2″ MNPT Bore Through; RE-8C-8M-BT

Miscellaneous Fittings

1/4″ C x 1/4″ MNPT Elbow; RE-4C-4M-E
1/4″ C x 1/4″ C Elbow; RE-4C-4C-E
3/8” C x 1/4″ MNPT Elbow; RE-6C-4M-E
3/8” C x 3/8” C Elbow; RE-6C-6C-E
3/8” C x 3/8” MNPT Elbow; RE-6C-6M-E

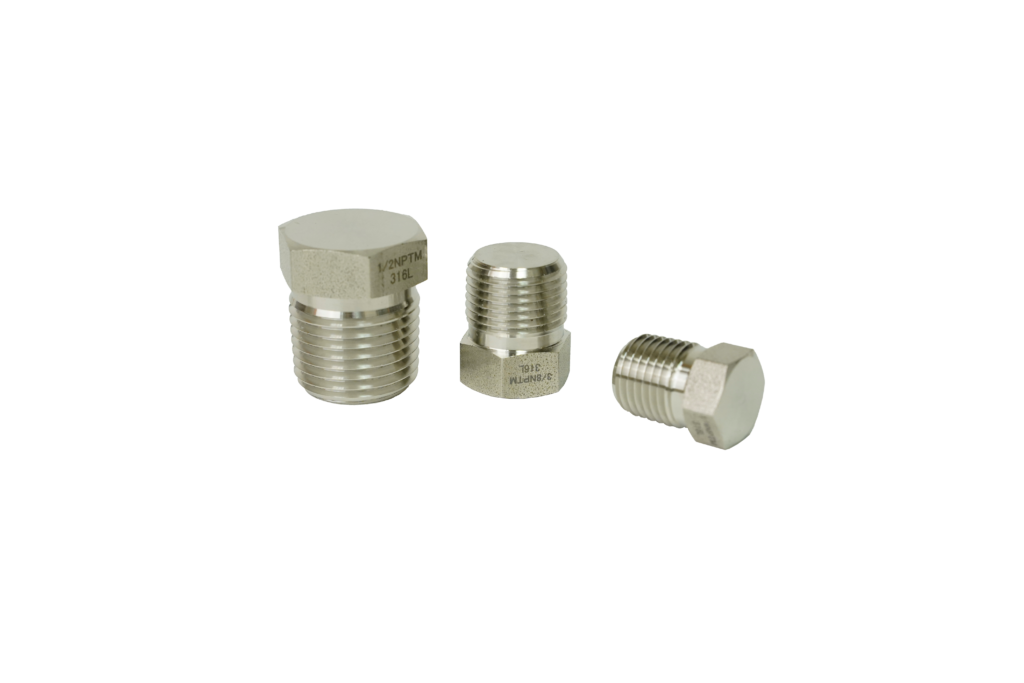

1/4″ MNPT Plug; RE-PLUG-4M
3/8” MNPT Plug; RE-PLUG-6M
1/2″ MNPT Plug; RE-PLUG-8M

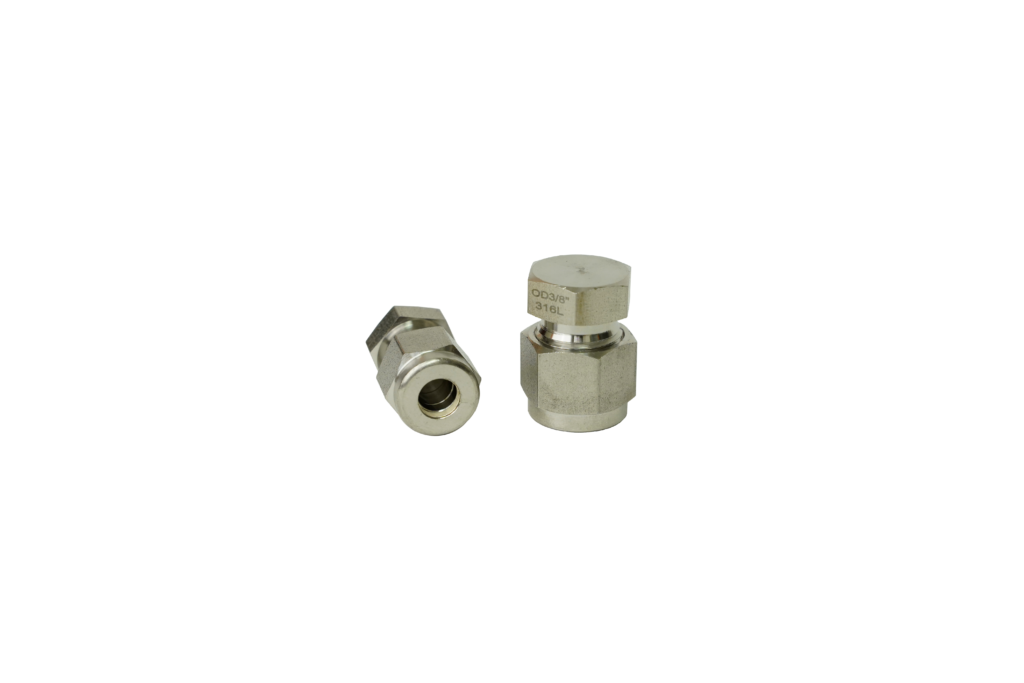

1/4″ C Cap; RE-CAP-4C
3/8” C Cap; RE-CAP-6C3/8 C CAP 316L RE-CAP-6C

Legend:

C = Compression / Capillary = double ferrule
MNPT = Male National Pipe Thread
FNPT = Female National Pipe Thread
BT = Bore Through
OSBT = Oversize Bore Through

Metallurgies available in stock = 316L, 2205 Duplex, Inconel 600, Monel K400, *specialty materials available on request
